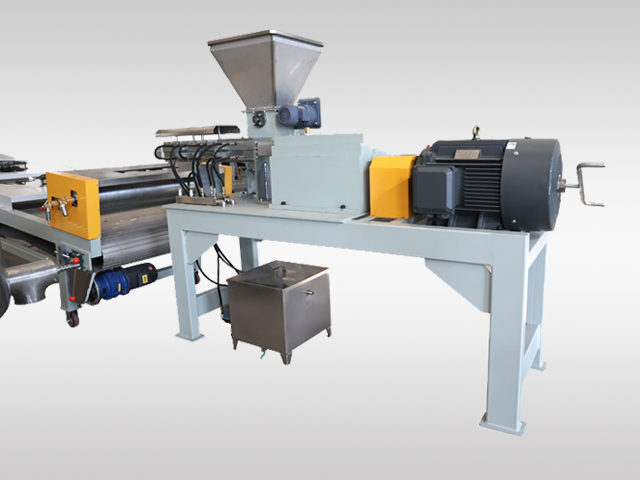

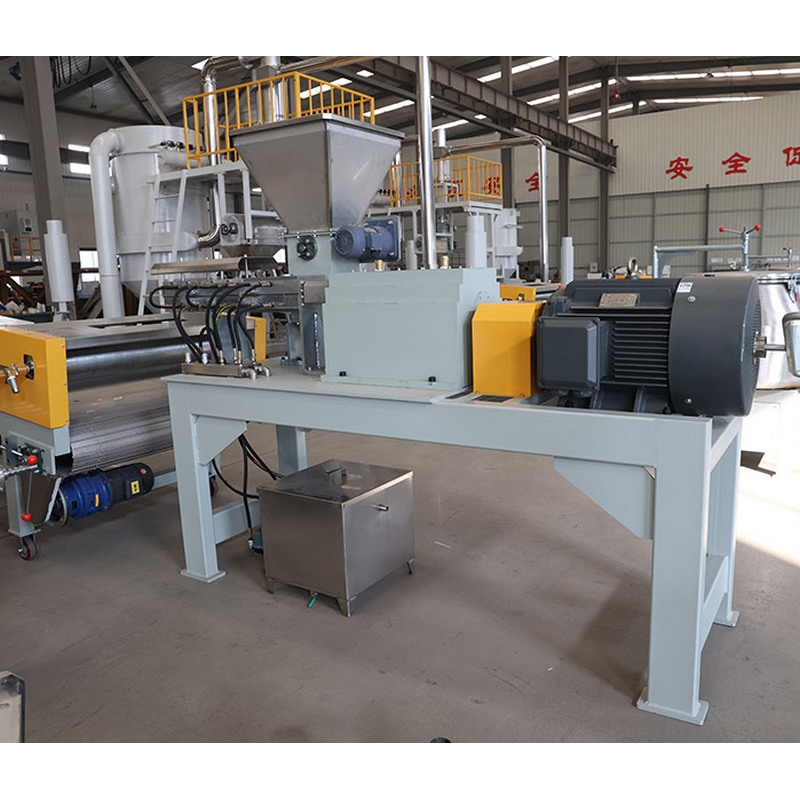

Powder Coating Extruder JCJ30

Powder Coating Extruder JCJ30 is suitable for thermal microscopic uniform mixing and reaction in the production of thermosetting powder coatings.

The powder coating extruder has excellent performance, which is reflected in the following aspects:

(1) Compact structure.

(2) Production efficiency 350-450kg/h (ordinary type, decorative paint).

(3) The mixing effect is good.

(4) Strong self-cleaning ability and no solidification tendency of stored materials.

(5) Easy to clean the machine.

(6) Cooling speed is fast.

(7) Long service life.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Details Of Powder Coating Extruder JCJ30:

Before the extruder starts offevolved to work every time, flip the motor with the crank manage to see if the rotation is effortless and labor-saving. Otherwise, it need to be saved at the method temperature for three to 5 minutes, till the rotation is labor-saving, and then it is allowed to begin operation.

Every time the extruder begins to work, the screw runs at a low velocity and feeds a little. After the fabric is extruded, step by step enlarge the screw velocity to the price required via the process.

When the desktop is shut down after work, Zone 1 and Zone two ought to be compelled to cool down to room temperature to forestall substances from solidifying.

It is strictly forbidden to maintain the first area and the 2d area in the warmness upkeep kingdom for a lengthy time, and to flip on the desktop and run idling for a lengthy time.

Powder Coating Extruder

Product Parameters:

production capacity	350-450kg
Screw diameter	63mm
aspect ratio	17：1
Number of screws	2
main motor power	37kw
Feeding motor power	0.75kw
heating power	8.4kw
Screw revolutions	0～540 rpm
